Structure loads
Click on the LOAD button to have access to the load case types :
After selection, the choice becomes the current load case type.
External cases is visible only if there is at least one linked study and one or more links between piping nodes and structure nodes.
1. Edition
For all case types, you can create, modify or remove a selected case :
- New : open an empty window of current load case type : press OK to create the load
- Edit : open a window of current load case type with the selected case : press OK to modify the load case
- Delete : remove the selected case

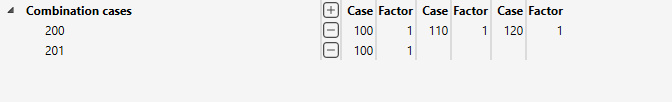

- Selection : list of all cases of the current load case type
