study

The study object gives access to several methods and can be used only in Project script.

1. Properties

Name Return Description
Inputs array of string Access to an item [i] in Project script’s Inputs
Outputs array of string Access to an item [i] in Project script’s Outputs
getDirectory() string Get the current study directory
createMetal() metal Create an empty metal object
getMetal() metal Access to current metal object of the study
getMetal(directory) metal Return the first metal in directory if exists. None otherwise
saveMetal(metal, directory) - Save the metal in directory
getSolution() solution Access to current Solution object of the study
disposeSolution() - Dispose the solution
getMaterialLibraryModel(name) MaterialLibraryModel Access to a material library by its name (without .materials)
createMaterialLibraryModel(name) MaterialLibraryModel Create a material library by a name (without .materials)
showInformation(title, info) - Add 2 strings into the description of a study (one for column 1 and one form column 2)
getScriptDirectory() string Return the current script directory
copyDirectoryToTemp(directory) string Return the new unic TEMP directory where the copy has been done
createVariableWindow() VariableWindow Return an empty window
createCommand(name, metal) CustomCommand Return an empty command with a name and a metal
executeCommand(command, directory) - Execute a CustomCommand (from createCommand) and the directory of the metal
solvePipingModel(solvername, sandbox) solution Solve current connected metal with a solver. sandbox = True means not in the study folder
solvePipingModel(metal, solvername, directory) solution Solve metal with a solver in directory
analysePipingElement(analysename, solution, node1name, node2name, loadcase, template, options, keepreport) - Launch a Finite element Analysis of a piping element

See metal for more information.

See solution for more information.

See libraries for more information about materialLibraryModel.

2. Examples

2.1 Inputs/Outputs

Imagine a brick (script) composed of an EDIT control (user can write something) and a TEXT control (text link from another brick).

We want that when clicking on Run button, the script returns as result the combination of the EDIT and the TEXT :


# Python script
study.Outputs[0] = study.Inputs[0] + " " + study.Inputs[1]

2.2 getDirectory()

Imagine user wants to save content in a text file in the current study directory :

# Python script
dir = study.getDirectory()
filename = os.path.join(dir, "info.txt")
with open(filename,'w') as f:
	f.write(content)

2.3 createMetal()

The metal object contains the whole definition of a piping : (geometry, loads, code and edition…).

Imagine user wants to create an empty model for the current study :

REM : a model contains default values but must have at least one layer

REM : the model of the study must be named “conception.metaL”

# Python script
from Cwantic.MetaPiping.Core import Layer

metal = study.createMetal()

layer = Layer("0")
metal.Layers.Add(layer) # Attention ! metal.Layers is a C# list. Use Add instead of append

dir = study.getDirectory()
filename = os.path.join(dir, "conception.metaL")

metal.SaveToFile(filename)

See metal for more information.

2.4 loadMetal() vs getMetal()

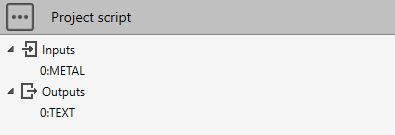

Imagine user wants to check if a metaL is connected (result as a text in Outputs[0]).


# Python script
if study.Inputs[0] != "":
    metal = study.loadMetal(study.Inputs[0])
    if metal != None:
        study.Outputs[0] = "Metal connected"
    else:
        study.Outputs[0] = "Invalid metal !"
else:
    study.Outputs[0] = "No metaL connected !"

loadMetal() can load a metaL file based on its filename. Usefull if you want to manipulate a metaL outside the study directory !

Or with the shortcut getMetal() :

# Python script
metal = study.getMetal()
if metal != None:
    study.Outputs[0] = "Metal connected"
else:
    study.Outputs[0] = "No metaL connected !"

getMetal() load the current metaL in the study if it is connected !

See metal for more information.

2.5 saveMetal()

saveMetal(metal, directory)

The metal can be saved in a specified directory. If there is already a metal file in the directory, it will replace it otherwise a ‘conception.metaL’ file will be created.

# Python script
metal = study.getMetal()
if metal != None:
    documents = os.path.expanduser('~/Documents')
    study.saveMetal(metal, documents)

saveMetal() also save the *.fre file next to the metal.

2.6 getSolution()

The solution object contains all results after calculation.

Imagine user wants to check if the solution exists (result as a text in Outputs[0]).

# Python script
solution = study.getSolution()
if solution != None:
    study.Outputs[0] = "Solution connected"
else:
    study.Outputs[0] = "Solution not connected or doesn't exist"

getSolution() load the current solution in the study if it is connected !

To be perfectly rigorous, you need to call the disposeSolution() method once you’ve finished processing the solution.

# Python script
solution = study.getSolution()
if solution != None:
    study.Outputs[0] = "Solution connected"
    ...
    study.disposeSolution()
else:
    study.Outputs[0] = "Solution not connected or doesn't exist"

See solution for more information.

2.7 getMaterialLibraryModel()

Return a MaterialLibraryModel based on a name (without extension).

Return None if the library doesn’t exist.

See libraries for more information about materialLibraryModel with an example.

2.8 createMaterialLibraryModel()

You can create your own library of material based on a name (without extension).

Return a new empty MaterialLibraryModel or None if already exists.

See libraries for more information about materialLibraryModel with an example.

2.9 showInformation()

This method is only accessible in scripts that show informations about the MetaL and the results of the current study in Explorer.

metal = study.getMetal()
if metal != None:
    study.showInformation('Model exists !', '')

See an example here : Show informations about a study.

2.10 getScriptDirectory()

Returns the current script directory. Usefull if you store there files that you want to use in your script.

# Python script
scriptdirectory = study.getScriptDirectory()

2.11 createVariableWindow()

createVariableWindow() returns an empty window that will show user’s variables.

# Python script
window = study.createVariableWindow()

Window components :

Method Params Description
AddComment string Add a comment (text)
AddValue string, string, double Add a numeric variable (variable name, text, default value)
AddImage string Add an image (local filename)
AddList string, string, [string], int Add a variable list of texts (variable name, text, array of texts, default index)
AddCheck string, string, bool Add a variable checkbox (variable name, text, default value)
ShowModal bool Show the window and return true if click on OK button
GetValue string Return a numerical value (variable name)
# Python script
directory = study.getScriptDirectory()

window = study.createVariableWindow()
window.AddComment("Fill the variables")
window.AddValue("L", "L =", 10)
window.AddList("CHOICE", "Choice =", ["Choice A", "Choice B", "Choice C"], 1)
window.AddCheck("ACTIVE", "Active ?", True)
window.AddImage(os.path.join(directory, "image.jpg"))
if window.ShowModal():
    val1 = window.GetValue("L")
    CHOICE_ID = window.GetValue("CHOICE")
    # CHOICE_ID = 0, 1 or 2
    val2 = 0
    if CHOICEID == 1:
        val2 = 0.5
    else:
        if CHOICE == 2:
            val2 = 3
    ACTIVE_ID = window.GetValue("ACTIVE")
    # ACTIVE_ID = 0 (False) or 1 (True)
    val3 = ACTIVE_ID == 1

In this example, we have 3 variables (L, CHOICE, ACTIVE), 1 comment and 1 image. We suppose image.jpg existing in the script directory next to main.py.

L will show the default value of 10

CHOICE will show the default value of “Choice B” (index 1)

ACTIVE will be checked by default

After window show :

val1 will receive the user value for L

val2 will receive the user value for CHOICE transformed to a real value (0, 0.5 or 3)

val3 will receive the user value for ACTIVE transformed to bool

2.12 copyDirectoryToTemp()

copyDirectoryToTemp(directory)

Return the new unic TEMP folder where the copy of directory has been done

# Python script
# Copy the whole study directory to TEMP
temp_dir = study.copyDirectoryToTemp(study.getDirectory())

2.13 createCommand()

createCommand(name, metal)

Return an empty CustomCommand with a name and a metal

createCommand() must be used in conjunction with executeCommand()

# Python script
cmd = study.createCommand("ModifyMetal", metal)
# ...
# Fill cmd with sub commands
# ...
study.executeCommand(cmd, dir) # metaL and fre will be modified in dir

2.14 executeCommand()

executeCommand(command, directory)

Execute the CustomCommand passed in parameter

executeCommand() must be used in conjunction with createCommand()

# Python script
cmd = study.createCommand("ModifyMetal", metal)
# ...
# Fill cmd with sub commands
# ...
study.executeCommand(cmd, dir) # metaL and fre will be modified in dir

2.15 solvePipingModel()

solvePipingModel(solvername, sandbox)

Solve current connected metal with a solver. Return a solution object.

solvername can be :

  • ‘Aster’
  • ‘PipeStress’ if installed on the computer

sandbox can be :

  • True : the result files will be placed in a temporary directory
  • False : the result files will be placed in the current study

Example :


# Python script

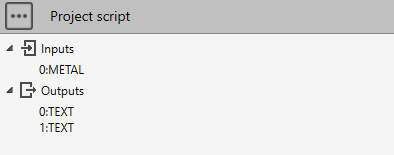

# Compare solutions between Aster and PipeStress of the current metal
# The solutions are computed in sandbox and do not affect the study
if study.getMetal() != None:
    solution1 = study.solvePipingModel("PipeStress", True)
    if solution1 != None:
        maxRatio = solution1.getMaxStressRatio()
        study.Outputs[0] = "PipeStress Max ratio = {}".format(round(maxRatio, 2))
        study.disposeSolution()
    solution2 = study.solvePipingModel("Aster", True)
    if solution2 != None:
        maxRatio = solution2.getMaxStressRatio()
        study.Outputs[1] = "Aster Max ratio = {}".format(round(maxRatio, 2))
        study.disposeSolution()
else:
    study.Outputs[0] = "Please connect metaL !"
    study.Outputs[1] = ""

Other version :

solvePipingModel(metal, solvername, directory)

Solve metal with a solver in a directory. Return a solution object.

# Python script
def SolveMetalWithChanges(solverName, changes):
    maxRatio = 0
    try:
        # Make a copy of study directory to temp_dir
        temp_dir = study.copyDirectoryToTemp(study.getDirectory())
        # Load temporary metaL
        metal = study.getMetal(temp_dir)
        # Modify metaL with changes
        ...
        # Solve metaL to temp_dir
        solution = study.solvePipingModel(metal, solverName, temp_dir)
        if solution != None:
            # Get maxRatio
            maxRatio = solution.getMaxStressRatio(True)
            solution.Dispose()
    finally:
        # Remove temp_dir
        shutil.rmtree(temp_dir)

    return maxRatio

2.16 analysePipingElement()

analysePipingElement(analysename, solution, node1name, node2name, loadcase, template, options, keepreport)

Launch a Finite element Analysis of a piping element

Parameter Unit Description
analysename string Name of the analyse
solution Solution Solution of the piping model
node1name string Element’s node1 name
node2name string Element’s node2 name
loadcase int Load case number
template string Name of the template file extension
options dictionary<string, string> All parameters needed in FEA window
keepreport bool True if you want to only keep the analysis report and destroy the analysis directory

template can be :

  • ‘meshpipe’
  • ‘brickpipe’
  • ‘meshbend’
  • ‘brickbend’
  • ‘brickreducer’

options is a C# dictionary !

Example :

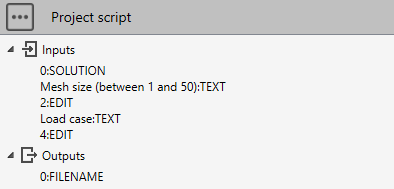

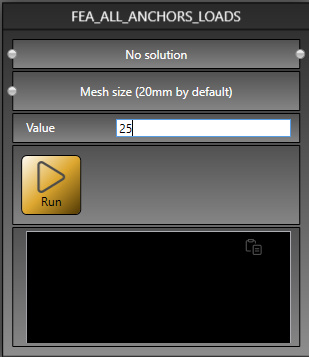

We want to analyse the reducer between nodes 180 and 190. User can decide the mesh size of the finite elements and the load case. All other parameters are imposed. It returns the FEA reports.


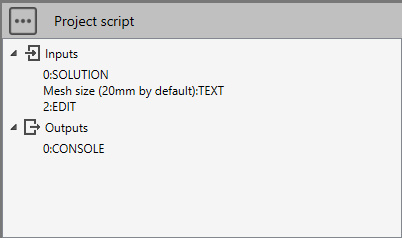

# Python script
from System.Collections.Generic import Dictionary
import os

# FEA analyze of a reducer
study.Outputs[0] = ""

solution = study.getSolution()
if solution != None:
    # Mesh size
    try:
        meshsize = int(study.Inputs[2])
    except ValueError:
        meshsize = 20
    # Load case
    try:
        case = int(study.Inputs[4])
    except ValueError:
        case = 300

    # Options for reducer definition and mesh size
    options = Dictionary[str, str]()
    options["EXTEND"] = "0.1"
    options["MESH SIZE"] = str(meshsize)
    options["THICKNESS NUMBER"] = "1"
    options["REPORT TEMPLATE"] = "Cwantic_FEA_Piping_template_SI.docx"
    options["REPORT TABLE"] = "Cwantic_tables_SI.docx"

    # We want to delete the analysis directory and only keep the report in the study directory
    analyseName = "Reducer_180_190" # That will produce a report named "Reducer_180_190.docx"
    study.analysePipingElement(analyseName, solution, "180", "190", case, "brickreducer", options, True)

    # Rename file with current params
    report = "{0}_Case{1}_Mesh{2}.docx".format(analyseName, case, meshsize)
    filename = os.path.join(study.getDirectory(), analyseName + ".docx")
    newfilename = os.path.join(study.getDirectory(), report)

    if os.path.exists(newfilename):
        try:
            os.remove(newfilename)
        except Exception as e:
            pass
    if os.path.exists(filename):
        try:
            os.rename(filename, newfilename)
            study.Outputs[0] = report
        except Exception as e:
            pass
