Model
Model is the class that describes the whole piping/structure geometry and loadings.
Extension *.metaL on disk. JSON format.
# Python script
from Cwantic.MetaPiping.Core import Model
metal = Model()
1. Properties
| Name | Type | Description |
|---|---|---|
| Plant | string | Plant |
| Engineer | string | Engineer |
| Title | string | Title |
| Units | Units | System units |
| ZVertical | bool | True if Z vertical, otherwise Y vertical |
| CalculationCode | CalculationCode | Piping or Structure code |
| DefaultRoomTemperature | float | Default room temperature |
| DefaultOperatingDensity | float | Default operating density |
| DefaultTestDensity | float | Default test density |
| DefaultDesignCondition | OperatingCondition | Default design condition |
| ColdModulus | bool | True if cold modulus is used for all cases, otherwise hot modulus is used |
| HotAllowable | bool | True if allowable stress at operating temperature is used, otherwise design temperature is used |
| PressureStiffening | bool | True if pressure correction for bends |
| PressureElongation | bool | True if pressure elongation is considered for thermal expansion and test cases |
| SimplePressureStress | bool | True if simplified formula is used for pressure stress |
| ModalAnalysis | bool | True if modal extraction is performed |
| ModalRefCase | StaticCase | Young modulus used in modal extraction is evaluated at the temperature of the reference case (Hot modulus option only) |
| CutOffFrequency | float | Cut-off frequency |
| MassGenerationFrequency | float | Automatic mass point generation frequency |
| NbMaxModes | int | Maximum number of extracted mode shapes (if cut-off frequency is 0) |
| MassModeling | int | Mass modeling option (for compatibility with PIPESTRESS - field TITL/BL) |
| BranchModeling | TeeModeling | Determines how branches are modeled |
| BranchForcesAtSurface | bool | True if the branch forces and moments are taken at run surface (when allowed by the calculation code) |
| ThermalCyclesPerElement | bool | True if the equivalent number of cycles and stress reduction factor are determined at every point, otherwise the maximum stress reduction factor is used at all points |
| TrueTransientRange | bool | True if the true range of the thermal gradient stress is calculated, otherwise the range of the thermal gradient stress is determined using the sign entered in the thermal case |
| AlternativeKe | bool | If true, use Ke.meca for mechanical stresses and Ke.ther for thermal stresses as per paragraph B 3653.6 a) (RCC-M only) |
| Average3Sm | bool | If true, the average value of 3Sm for the load set pair is used in absence of mechanical loads, otherwise the lowest value of 3Sm is used (ASME only) |
| ResidualRunMoment | ResidualRunMoment | The residual run moment of tees is determined based on the sign of the moments on both sides of the run. When the loads are unsigned, this option controls how the residual moment is calculated |
| OutputFatigueAtAllPoints | bool | True if the detailed fatigue analysis is output at all points, otherwise it is only output at points where the fatigue criteria are not met |
| OutputEq12And13Always | bool | True if the value of equations 12 and 13 is always output, otherwise it is only output when equation 10 exceeds 3Sm (ASME and RCC-M only) |
| ExtrapolateFatigueCurves | bool | True if the fatigue curves are extrapolated beyond the last point |
| ExtrapolateCreepCurves | bool | True if the creep curves are extrapolated beyond the last point (RCC-MRx only) |
| RB3661_15 | bool | True if the alternative rule RB 3661.15 is used (RCC-MRx only) |
| ReducerModulus | ReducerModulus | Determines what section modulus Z and ratio D/t is used for reducers (RCC-MRx only) |
| RB3662_24 | bool | True if the alternative rule RB 3662.24 is used (RCC-MRx only) |
| RB3662_Relaxation | bool | True if relaxation is taken into account (RCC-MRx only) |
| SteelToConcreteRatio | float | Ratio of steel to concrete elastic modulus used with the rigid anchor plate method. If 0, the ratio is determined automatically |
| ConsistentMasses | bool | True if consistent mass matrices are used, otherwise lumped mass matrices are used |
REM : a model must have one calculation code of type PipingCode or StructureCode.
Click here for more information about CalculationCode
The class Model also provides lists of the objects contained in the piping/structure model:
| Name | Description |
|---|---|
| Nodes | List of Node |
| Elements | List of Element |
| LumpedMasses | List of LumpedMass |
| Restraints | List of Restraint |
| Materials | List of Material |
| Sections | List of Section |
| DLCSs | List of DLCS (Defined Local Coordinate System) |
| Tees | Dictionary<Node, Tee>, for piping only |
| UserSIFs | List of UserSIF (User-defined SIF), for piping only |
| RestrainedNodes | List of restrained nodes |
| Layers | List of Layer |
| Specifications | List of the specification names (string), for piping only |
| Joints | List of Joint, for structure only |
| PipingCodes | List of PipingCode, for piping only |
| DesignConditions | List of OperatingCondition, for piping only |
| Soils | List of Soil, for piping only |
| Links | List of NodeLink, for structure only |
| ModalSets | List of ModalSet |
REM : a piping model can have multiple PipingCode for different lines but only one calculation code at a time.
Click here for more information about Node
Click here for more information about Element and Tee
Click here for more information about Restraint
Click here for more information about Material
Click here for more information about Section
Click here for more information about ModalSet
The class Model also provides lists of load cases :
| Name | Description |
|---|---|
| StaticCases | List of StaticCase |
| THFCases | List of THFCase |
| RPrimCases | List of RPrimCase |
| RSecCases | List of RSecCase |
| CombiCases | List of CombiCase |
| StressCases | List of StressCase |
| RSpectra | List of RSpectrum |
| ThermalCases | List of ThermalCase |
| LoadSets | List of LoadSet |
| ExternalCases | List of ExternalCase |
| THFEvents | List of THFEvent |
Click here for more information about all Loadcase types
The class Model also provides default stiffness values (in MKS units) for restraints and spring elements :
| Name | Value | Description |
|---|---|---|
| ANCH_TSTIFF | 1.75e13 | Translational stiffness of anchors |
| ANCH_RSTIFF | 1.13e12 | Rotational stiffness of anchors |
| ROTR_STIFF | 1.13e12 | Stiffness of rotational restraints |
| RSTN_STIFF | 8.75e8 | Stiffness of translational restraints |
| SNUB_STIFF | 2.625e8 | Stiffness of snubbers |
| VSUP_STIFF | 8.75e8 | Stiffness of variable spring hangers |
| VSUP_KPIN | 1.75e13 | Pinned stiffness of spring hangers |
| SPRS_TSTIFF | 17.513 | Translational stiffness of spring elements |
| SPRS_RSTIFF | 0.136 | Rotational stiffness of spring elements |

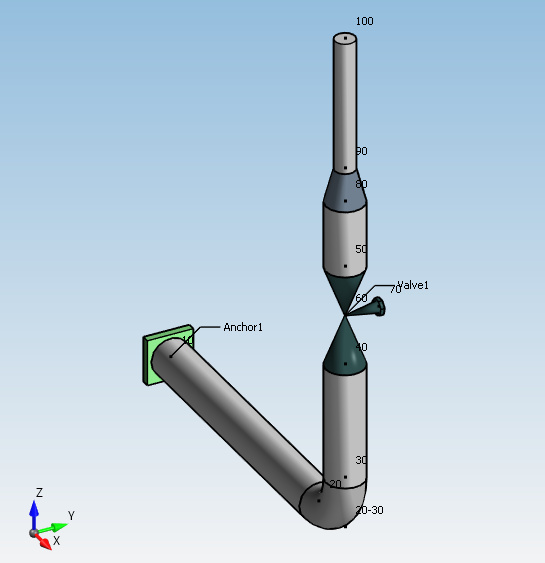

Example of piping model (without loadings) :
JSON *.metaL :
{
"Version": 1,
"JobNumber": 1,
"ZVertical": true,
"InputUnits": 0,
"OutputUnits": 0,
"DefaultRoomTemperature": 21.11,
"DefaultOperatingDensity": 0.0,
"DefaultTestDensity": 0.0,
"ColdModulus": true,
"HotAllowable": false,
"PressureStiffening": false,
"PressureElongation": false,
"SimplePressureStress": false,
"MassModeling": 3,
"BranchModeling": 0,
"BendMeshAngle": 15.0,
"DefaultDesignCondition": {
"Line": 15,
"T": 21.11
},
"DesignConditions": [],
"CalculationCode": {
"Code": "8",
"Edition": 11,
"Target": 0
},
"PipingCodes": [],
"Layers": [
{
"Name": "0"
}
],
"Soils": [],
"Nodes": [
{
"Line": 16,
"Name": "10",
"Coor": "0,0,0",
"IsCoorInput": true,
"JointType": 2
},
{
"Name": "20",
"Coor": "0.8476,0,0",
"JointType": 2
},
{
"Name": "20-30",
"Coor": "1,0,0"
},
{
"Name": "30",
"Coor": "1,0,0.1524",
"JointType": 2
},
{
"Name": "40",
"Coor": "1,0,0.5",
"JointType": 2
},
{
"Line": 22,
"Name": "60",
"Coor": "1,0,0.65"
},
{
"Name": "70",
"Coor": "1,0.1,0.65"
},
{
"Name": "50",
"Coor": "1,0,0.8",
"JointType": 2
},
{
"Name": "80",
"Coor": "1,0,1",
"JointType": 2
},
{
"Name": "90",
"Coor": "1,0,1.1016",
"JointType": 2
},
{
"Name": "100",
"Coor": "1,0,1.5",
"JointType": 2
}
],
"Sections": [
{
"Line": 13,
"Section": "PipeSection",
"Name": "1",
"LinearMass": 16.1,
"Description": "4\" Sch 40-Std-40S",
"Diameter": 0.1143,
"Thickness": 0.0060199999999999993
},
{
"Line": 14,
"Section": "PipeSection",
"Name": "2",
"LinearMass": 5.44,
"Description": "2\" Sch 40-Std-40S",
"Diameter": 0.06032,
"Thickness": 0.00391
}
],
"Materials": [
{
"Line": 2,
"Material": "RegularMaterial",
"Name": "100",
"Type": 1,
"Target": 0,
"ThermalExpansionOption": 2,
"RefTemperature": 21.1,
"Density": 7850.0,
"Poisson": 0.3,
"MaxTemperature": 371.0,
"Description": "SA-106 A",
"Properties": [
{
"TE": 21.0,
"EH": 202700000000.0,
"EX": 1.152E-05,
"SH": 94500000.0,
"SY": 206900000.0,
"SU": 0.0,
"SM": 110300000.0,
"CR": 0.0,
"GH": 0.0,
"E2": 0.0,
"CO": 0.0,
"DI": 0.0
},
{
"TE": 65.0,
"EH": 200000000000.0,
"EX": 1.188E-05,
"SH": 94500000.0,
"SY": 194400000.0,
"SU": 0.0,
"SM": 110300000.0,
"CR": 0.0,
"GH": 0.0,
"E2": 0.0,
"CO": 0.0,
"DI": 0.0
},
{
"TE": 93.0,
"EH": 198600000000.0,
"EX": 1.206E-05,
"SH": 94500000.0,
"SY": 189600000.0,
"SU": 0.0,
"SM": 110300000.0,
"CR": 0.0,
"GH": 0.0,
"E2": 0.0,
"CO": 0.0,
"DI": 0.0
},
{
"TE": 149.0,
"EH": 195100000000.0,
"EX": 1.242E-05,
"SH": 94500000.0,
"SY": 182700000.0,
"SU": 0.0,
"SM": 110300000.0,
"CR": 0.0,
"GH": 0.0,
"E2": 0.0,
"CO": 0.0,
"DI": 0.0
},
{
"TE": 204.0,
"EH": 192400000000.0,
"EX": 1.278E-05,
"SH": 94500000.0,
"SY": 176500000.0,
"SU": 0.0,
"SM": 110300000.0,
"CR": 0.0,
"GH": 0.0,
"E2": 0.0,
"CO": 0.0,
"DI": 0.0
},
{
"TE": 260.0,
"EH": 188200000000.0,
"EX": 1.314E-05,
"SH": 94500000.0,
"SY": 168200000.0,
"SU": 0.0,
"SM": 110300000.0,
"CR": 0.0,
"GH": 0.0,
"E2": 0.0,
"CO": 0.0,
"DI": 0.0
},
{
"TE": 316.0,
"EH": 182700000000.0,
"EX": 1.332E-05,
"SH": 94500000.0,
"SY": 158600000.0,
"SU": 0.0,
"SM": 105500000.0,
"CR": 0.0,
"GH": 0.0,
"E2": 0.0,
"CO": 0.0,
"DI": 0.0
},
{
"TE": 343.0,
"EH": 179300000000.0,
"EX": 1.35E-05,
"SH": 94500000.0,
"SY": 153100000.0,
"SU": 0.0,
"SM": 100700000.0,
"CR": 0.0,
"GH": 0.0,
"E2": 0.0,
"CO": 0.0,
"DI": 0.0
},
{
"TE": 371.0,
"EH": 175800000000.0,
"EX": 1.368E-05,
"SH": 86200000.0,
"SY": 148200000.0,
"SU": 0.0,
"SM": 99300000.0,
"CR": 0.0,
"GH": 0.0,
"E2": 0.0,
"CO": 0.0,
"DI": 0.0
}
]
}
],
"Elements": [
{
"Line": 19,
"Element": "Pipe",
"Node1": 0,
"Node2": 1,
"DL": "0.8476,0,0",
"Material": 0,
"Layer": 0,
"Section": 0
},
{
"Line": 20,
"Element": "Bend",
"Node1": 1,
"Node2": 3,
"DL": "0.1524,0,0.1524",
"Material": 0,
"Layer": 0,
"Section": 0,
"DL1": "0.1524,0,0",
"DL2": "0,0,0.1524",
"Node3": 2,
"Radius": 0.1524,
"Angle": 1.570796326794897
},
{
"Line": 21,
"Element": "Pipe",
"Node1": 3,
"Node2": 4,
"DL": "0,0,0.3476",
"Material": 0,
"Layer": 0,
"Section": 0
},
{
"Line": 22,
"Element": "Valve",
"Node1": 4,
"Node2": 7,
"DL": "0,0,0.3",
"Material": 0,
"Label": "Valve1",
"Layer": 0,
"Mass": 100.0,
"Section": 0,
"ThicknessFactor": 3.0,
"Type": 0,
"PB": 5,
"PC": 6,
"BL": "0,0.1,0",
"IsStemEmpty": true
},
{
"Line": 23,
"Element": "Pipe",
"Node1": 7,
"Node2": 8,
"DL": "0,0,0.2",
"Material": 0,
"Layer": 0,
"Section": 0
},
{
"Line": 24,
"Element": "Reducer",
"Node1": 8,
"Node2": 9,
"DL": "0,0,0.1016",
"Material": 0,
"Layer": 0,
"Section": 0,
"Section2": 1
},
{
"Line": 26,
"Element": "Pipe",
"Node1": 9,
"Node2": 10,
"DL": "0,0,0.3984",
"Material": 0,
"Layer": 0,
"Section": 1
}
],
"Restraints": [
{
"Line": 17,
"Restraint": "Anchor",
"Node": 0,
"AttachedElement": 0,
"Label": "Anchor1",
"Layer": 0
}
],
"LumpedMasses": [],
"Tees": [],
"DLCSs": [],
"UserSIFs": [],
"Specifications": [],
"Links": [],
"StaticCases": [],
"THFEvents": [],
"THFCases": [],
"RSpectra": [],
"RPrimCases": [],
"RSecCases": [],
"CombiCases": [],
"StressCases": [],
"ThermalCases": [],
"LoadSets": [],
"ExternalCases": []
}
