Sample 14 : Get max stress ratio report for all combination cases

1. Goal

Create a script that will create a report (Report.txt) with the max stress ratio of all combination cases.

2. Script definition

From the Home/Python, click on button 2 (Add script) :


Select “Project script” and give it the name “MaxRatioByCombinationReport”

Say NO to the question about creation of virtual environment. The Requirements.txt will be hidden.


3. Script properties

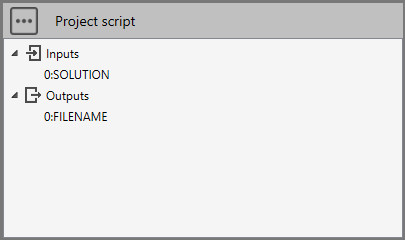

Add 1 SOLUTION input and 1 FILENAME output :


The input SOLUTION must receive a connection from the Solution connector of the solver brick.

The output FILENAME will expose a TXT file. You can double click to see the content.

4. Main.py

Copy/paste this code in the Editor :

# © Cwantic
import os
import math

study.Outputs[0] = ""
solution = study.getSolution()
if solution != None:
    metal = solution.getMetal()
    if metal != None and metal.CombiCases.Count>0:
        study.Outputs[0] = "Report.txt"
        dir = study.getDirectory()
        filename = os.path.join(dir, study.Outputs[0])

        with open(filename,'w') as f:
            f.write("Max Ratio by combination cases" + "\n")
            f.write("------------------------------" + "\n")
            # Get all combination cases
            for combiCase in metal.CombiCases:
                stressRatios = solution.getStresses(combiCase.Number, 0) # 0 for Ratios
                if len(stressRatios) > 0:
                    maxRatio = 0
                    for ratio in stressRatios:
                        if ratio > maxRatio:
                            maxRatio = ratio
                    st = "{:<4} {:<30} : MAX RATIO = {:<5}".format(combiCase.Number, combiCase.Title, round(maxRatio, 3))
                    f.write(st + "\n")

Save it !

5. Result

Add this script in a study, connect the Solution output of the solver brick and after a click on the RUN button (1) :


Double click on Report.txt to open the results (2).
