Quality Assurance

To ensure quality assurance of Aster solver, MetaPiping & MetaStructure provide a tool that execute piping and structure projects and compare the results to official references.

Piping references :

  • Piping calculation software PIPESTRESS 4.2 FOLIO: 5/165
  • RCC-M Code, 2002 to 2020 editions: “Design and construction rules for mechanical equipment equipment for PWR nuclear reactors”.
  • Code EN 13480-3 2017 edition and Addenda 2020: “Metallic industrial piping”.
  • ASME Boiler and Pressure Vessel Section III Subsection NB, editions 2015 to 2021
  • ASME Boiler and Pressure Vessel Section III Subsection NC-ND, editions 2004+A06 to 2021
  • ASME B31.1 editions 1998 to 2020: “Power Piping”.
  • Technical note EDF ENSIN9100025 index D and E
  • “Guide de validation des progiciels de calcul de structures” AFNOR TECHNIQUE
  • U.S. NRC Piping Benchmark Problems, NUREG/CR-1677, BNL-NUREG-51267, Vol. 1, August 1980
  • U.S. NRC Piping Benchmark Problems, NUREG/CR-1677, BNL-NUREG-51267, Vol. 2, August 1985
  • U.S. NRC Piping Benchmark Problems, NUREG/CR-6414, BNL-NUREG-52487, January 1997

Structure references :

  • BEAMSTRESS 2.0.1 structural design software FOLIO: 5/114
  • RCC-M Code, 2007 editions: “Design and construction rules for mechanical equipment for PWR nuclear reactors”.
  • ASME Boiler and Pressure Vessel Section III Subsection NF, 2013 editions
  • EN 1993-1-1, October 2005 edition, + EN 1993-1-1/NA, May 2007 edition, + corrigendum EN 1993-1 1:2005/AC:2009 (April 2009): “Dimensioning of steel structures”.
  • NF EN 13480-3, editions 2010 to 2017: “Metallic industrial piping - Part 3: design and calculation”.
  • EN 1992-4, September 2018 edition: “Design and calculation of concrete fasteners”.
  • “Embedded steel column feet”, Lescouarc’h, April 1988
  • “Articulated column feet in steel”, Lescouarc’h, June 1982
  • “Guide de validation des progiciels de calcul de structures” AFNOR TECHNIQUE

Validation tool

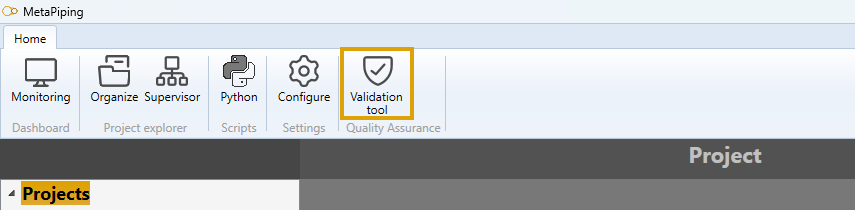

  1. Click on Validation tool button.

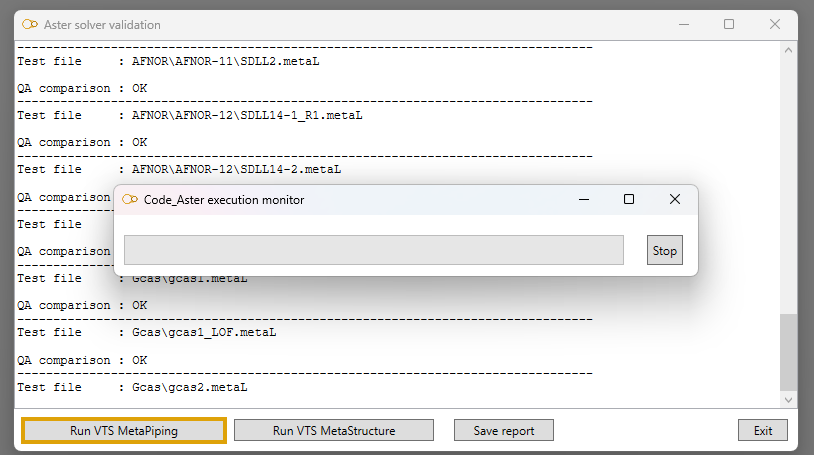

  2. Click on Run VTS MetaPiping or Run VTS MetaStructure to launch all reference projects.


After several minutes, you can save a report that shows the conformity of the Aster_Solver for current version of the application.
